Hot water low-temperature boiler
- VNTK 16 - 400



Use:

The hot water low-temperature boiler VNTK is designed for production of heating water with a nominal working overpressure up to 0.6/1MPa and temperature up to 110°C. It is designed for combustion of natural gas, diesel and light fuel oil. The ideal solution is to use it as a standalone source or as a central heating unit for heating buildings for civil and industrial use. VNTK boilers alow flexible and fully automatic operation. They were developed to replace some well-proven ČKD KDVE and BK boilers, taking into account today's requirements for efficiency and low emission values. Their advantage is robust construction, high efficiency, simple installation, simple maintenance and repairability, long reliability with a 5-year warranty. All this is supported by a 24-hour service background in the Czech Republic.




Technical description:

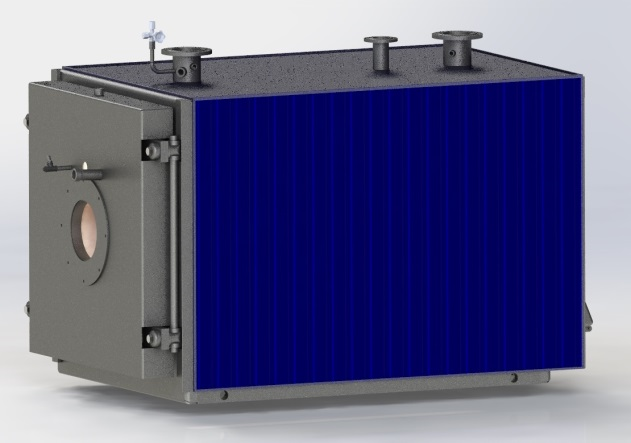

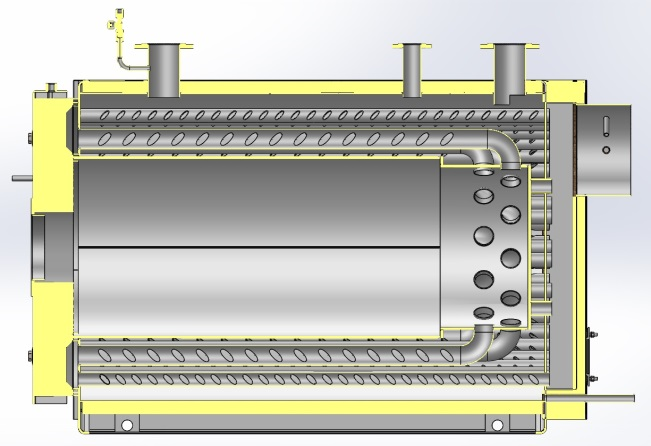

The boiler body consists of two steel cylinders welded to the front and rear walls. The combustion chamber is cylindrical, water-cooled. The rear wall forms a flue gas turnover, which passes into the second draught and returns through the fire tubes back to the front wall, where it turns into the third draught, which is formed by the openwork fire tubes. The front lid can be opened to the right or to the left depending on the location in the boiler room. It allows easy access to heating surfaces and their cleaning. The boiler is insulated and plated with blue anodized sheet and equipped with all measuring devices according to standards.

Upon request, the boiler can be supplied as an aggregate from the manufacturing plant with a burner, fittings and boiler automation, etc.

Boiler type

VNTK

16

25

40

65

100

160

250

300

400

Nominal output

kW

160

250

400

650

1000

1600

2500

3000

4000

Power input

kW

170

266

425

691

1064

1702

2659

3191

4255

Min. flow at nominal output

m3.h-1

3,6

5,6

9,2

14,1

22,5

36,8

58

69

92

Constructial overpressure

Bar

6

6

6

6

6

6/10

6/10

6/10

6/10

Max. temperature of output water

°C

110

110

110

110

110

110

110

110

110

Min. temperature of input water

°C

60

60

60

60

60

60

60

60

60

Boiler efficiency

%

92-94

92-94

92-94

92-94

92-94

92-94

92-94

92-94

92-94

Boiler efficiency with economiser

%

95-97

95-97

95-97

95-97

95-97

95-97

95-97

95-97

95-97

Boiler resistence on the flue gas side

Pa

150

170

230

310

420

440

600

700

700

Boiler length

mm

1900

2300

2600

2850

3250

3095

3350

3640

5200

Boiler width

mm

930

1000

1090

1250

1420

1660

2040

2120

2350

Boiler height

mm

1020

1100

1230

1400

1555

1805

2185

2265

2470

Height of the hole for the burner

mm

515

600

653

735

810

975

1165

1205

1426

Height of the smoke extension

mm

695

870

960

1075

1210

1420

1750

1780

2050

Diameter of the smoke extension

mm

219

219

273

324

377

470

530

630

700

Output and input flange PN6

mm

80

80

100

125

125

150

150

200

250

Diameter of combustion chamber

mm

480

516

580

715

825

943

1150

1200

1150

Length of combustion chamber

mm

1000

1400

1600

1850

2200

2290

2500

2785

4000

Hole for the burner

mm

200

200

240

240

280

298

340

340

410

Combustion chambre load

MW/m3

1,07

1,07

1,07

1,06

1,06

1,06

1,02

1,01

1,05

NOx  emissions (3 %O2) - Max

mg.m-3

80

80

80

80

80

80

80

80

80
